150mm GDH Series Elastic Rubber/Cast Iron (400kg)

150mm GDH Series Elastic Rubber Tyre Cast Iron (400kg)

From £30.82
( £36.98 Including VAT at 20% )


Castor Type:
Add to Cart

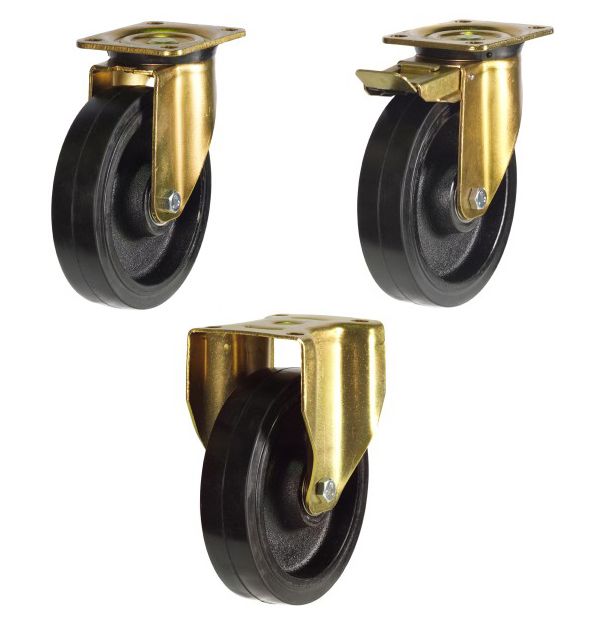

150mm Extra Heavy PRESSED STEEL Swivel, Fixed & Total Stop Swivel/Brake Castors Rubber Tyre/Cast Iron Centre Ball Bearing Bore.

Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue

Extra Heavy duty Pressed Steel bracket with swivel ball bearings.
Elastic Rubber Tyre / Cast Iron Centre Fitted With Sealed Ball Bearings
The bracket is finished in BZP and is corrosion resistant

Overall Height : 194mm
Wheel Size : 150mm
Tread Width : 50mm
Wheel Type : Rubber Tyre/Cast Iron Wheel with Ball Bearings
Load Rating : 400kg
Fixing Plate Size : 135 x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 130mm (Swivel)
Swivel Radius : 155mm (Brake)
