150mm GDH Series Polyurethane/Cast Iron (800Kg)

150mm GDH Series Polyurethane/Cast Iron (800Kg)

From £46.60
( £55.92 Including VAT at 20% )


Castor Type:
Add to Cart

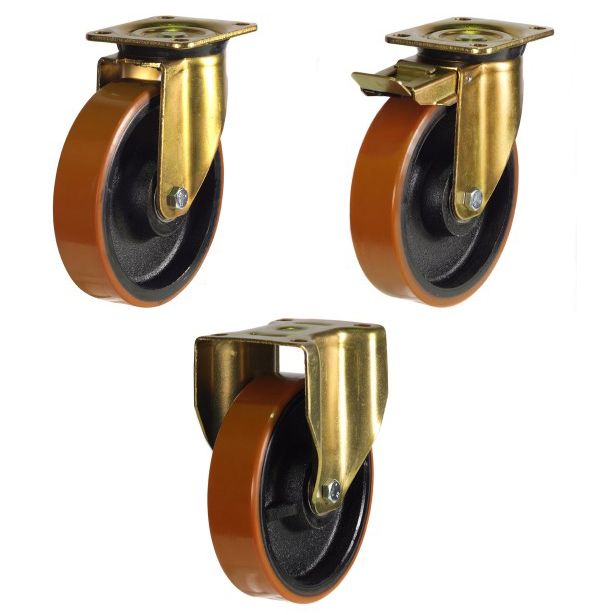

150mm Extra Heavy PRESSED STEEL Swivel, Fixed &  Total Stop Swivel/Brake Polyurethane / Cast Iron Wheel  800Kg

Ideal For Heavy Dynamic Loads and Towing applications or instances where shock loading is an issue

Extra Heavy duty Polyurethane tyred wheel on cast iron centre with ball bearings.
The bracket is finished in Passivated Zinc and is corrosion resistant

Overall Height : 194mm
Wheel Size : 150mm
Tread Width : 50mm
Wheel Type : Polyurethane Tyre/Cast Iron Centre Wheel with Ball Bearing Bore
Load Rating : 800kg
Fixing Plate Size : 135 x 110mm
Bolting Centre : 105 x 80mm
Bolt Size : 12mm (M12)
Swivel Radius : 130mm (Swivel)
Swivel Radius : 155mm (Brake)
