PUSH/PULL TOGGLE CLAMP SCENERY BRAKE WITH ADJUSTABLE RUBBER FOOT SPINDLE
£34.10
( £40.92 Including VAT at 20% )
Ref: ( £40.92 Including VAT at 20% )
TOGGLE CLAMP SCENERY WAGON BRAKE ASSEMBLY
Add to Cart
You may also be interested in:
Description

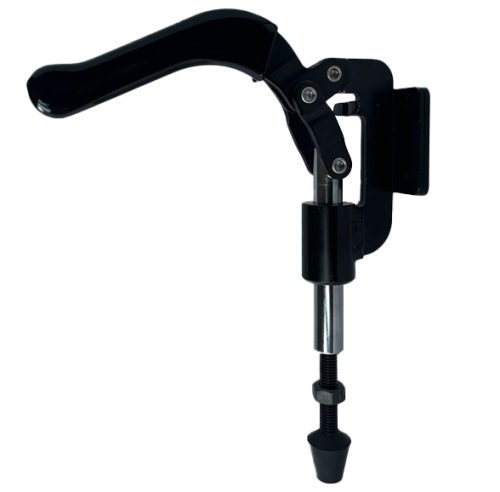

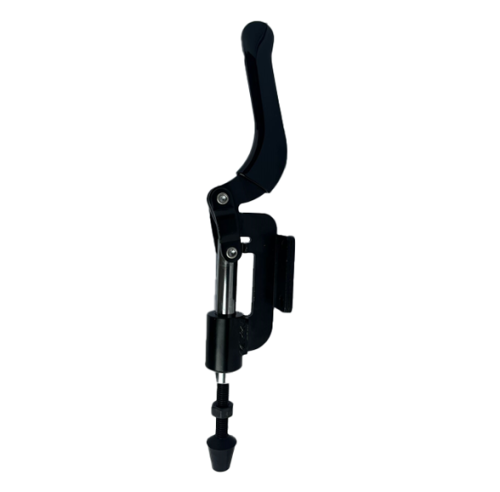

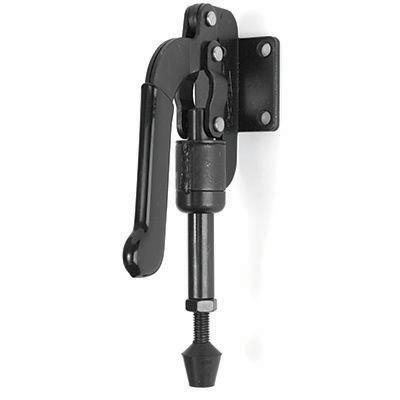

Heavy Duty Scenery/Workbench Brake with Rubber Foot Spindle
Wagon brakes provide secure holding power, as well as fast, quiet releasing without having to drill holes in the stage floor. Mounted on the side of a platform or scenery, they lift the scenery or workbench off its castors, preventing the wagon from shifting under active movements. This heavy duty black wagon brake has a rubber foot spindle, and holds a 364Kg maximum load.

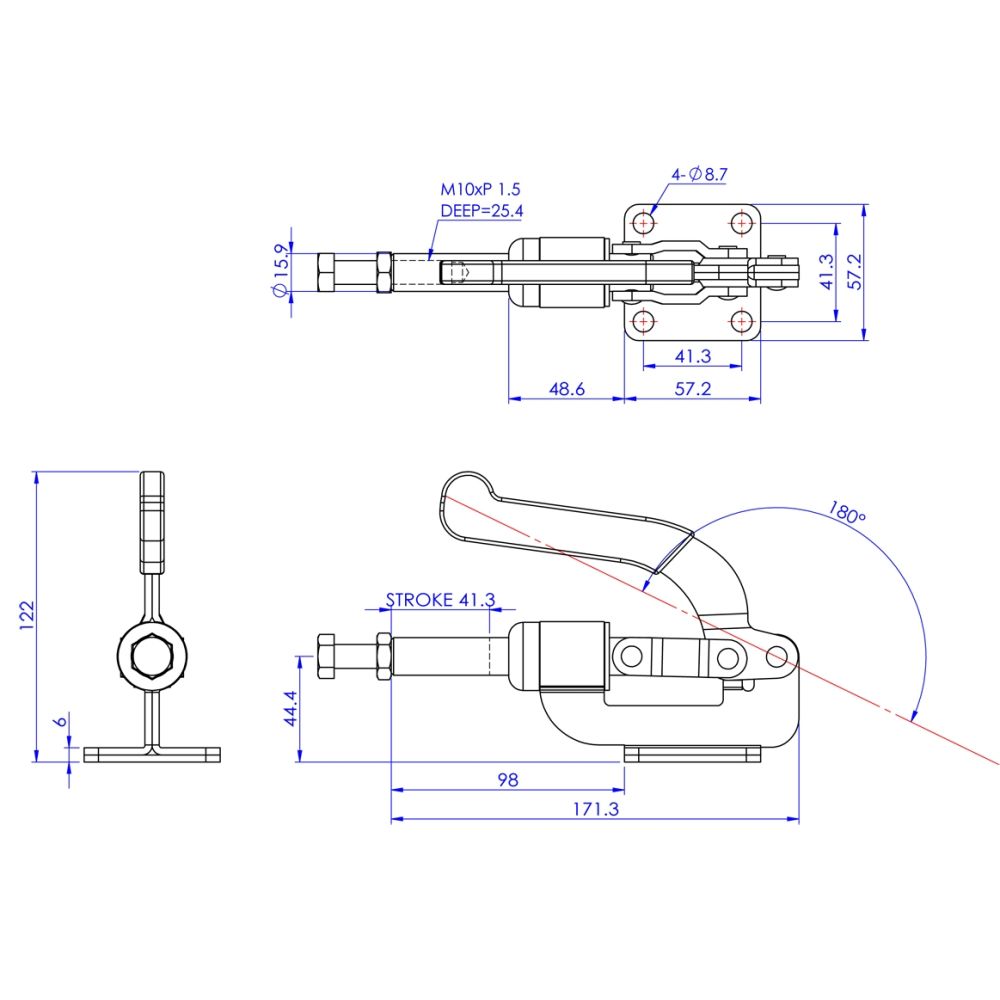

Extended Height : 171.3mm
Retracted Height : 130mm
Stroke Length : 41.3mm
Adjustable Spindle Range : 25mm
Fixing Plate Size : 57.2 x 57.2mm
Fixing Plate Bolting Centres : 41.3 x 41.3mm
Fixing Bolt Size : 8.7mm (M8)
Load Rating : 364Kg per Unit
Wagon brakes provide secure holding power, as well as fast, quiet releasing without having to drill holes in the stage floor. Mounted on the side of a platform or scenery, they lift the scenery or workbench off its castors, preventing the wagon from shifting under active movements. This heavy duty black wagon brake has a rubber foot spindle, and holds a 364Kg maximum load.
Extended Height : 171.3mm
Retracted Height : 130mm
Stroke Length : 41.3mm
Adjustable Spindle Range : 25mm
Fixing Plate Size : 57.2 x 57.2mm
Fixing Plate Bolting Centres : 41.3 x 41.3mm
Fixing Bolt Size : 8.7mm (M8)
Load Rating : 364Kg per Unit
