High Temp 80mm Wheel Diameter (150kg)

80mm Heavy Duty Duty Swivel & Fixed Castors High Temp Wheel

When using high temperature / heat resistant castors & wheels please note the temperature range stated is suitable for the ambient temperature of ovens & autoclaves. Consideration therefore should be given to the placement of the castors & wheels in relation to the heat source such as naked flame or inlet vents where the initial temperature will be considerably higher.

THIS PRODUCT IS REINFORCED THERMO PLASTIC WHEEL UNLIKE THE PHENOLIC WHEEL WHICH WILL SUFFER BLISTERING

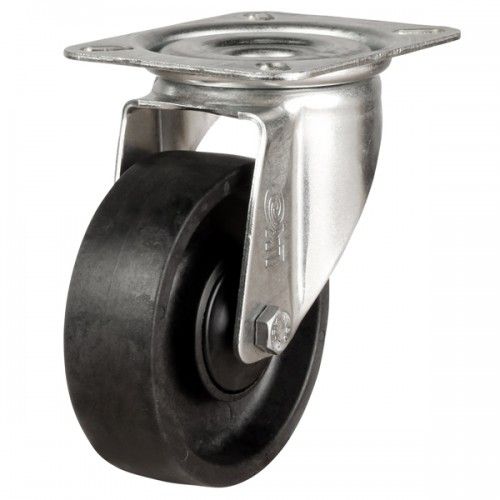

80 mm Swivel & Fixed Castor with 4 bolt fixing plate
Swivel & Fixed Castor High Temperature Glass Reinforced Thermo Plastic Wheel for 260 Degree C - 280 Intermittent

Overall Height : 106mm
Wheel Size : 80mm
Bearing Type : Plain
Wheel Type : 260 Degree's C Constant (280 Degree's C Short Periods)
Load Rating : 150kg
Fixing Plate Size : 105 x 85mm
Bolting Centre : 80 x 60mm
Bolt Size : 9mm
Tread Width : 32mm
Swivel Radius : 80mm
